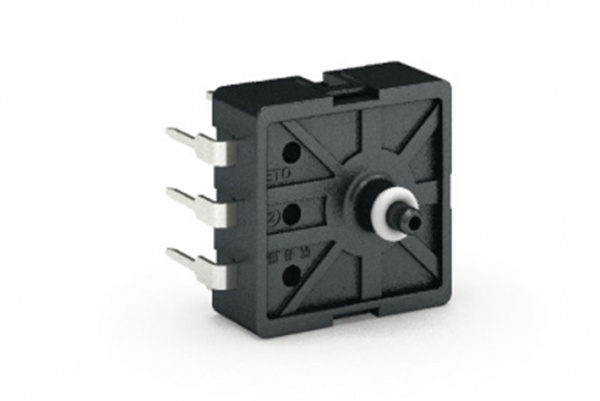

S400LP pressure sensors

S400LP pressure sensors

Applications

· Pressure sensor for gaseous media for integration on circuit boards in industrial and automotive applications



Features

    · Customised pressure range of 0.1 to 40 bar; for soldering or direct board or frame assembly

    · For relative and absolute pressure applications

    · Absolute pressure version for integration in potted applications

    · Pressure and electrical connection according to customer requirement

    · Developed for the highest EMV requirements



Technical data



S400LP
Nominal pressure  0.1 – 40 bar
Pressure reference Relative or absolute
Burst pressure  3x nominal pressure
Supply voltage  5 V or 8 to 32 V
Output signal  Analogue
Precision (–20 to 100°C)  ≤ ± 1.0 %
Operating temperature  -40 °C – 140 °C
Protection class  IP00
Electrical connection  Solder contacts, flex foils, plug-in contacts or other
