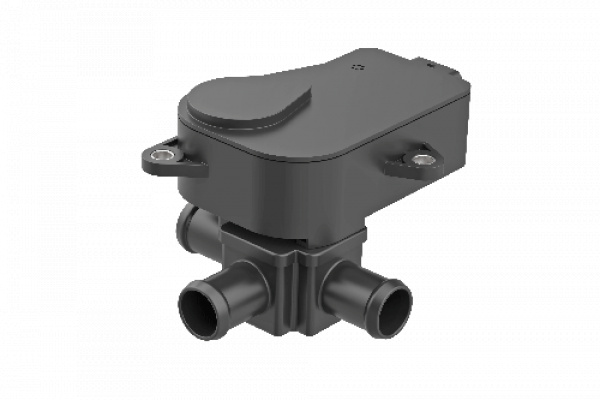

Cooling Motor Valve

Cooling Motor Valve


· Valve for the control of coolant circuits in passenger cars


Customer benefits

· Small pressure losses due to rotary vane valve design

· Low leakage

· Low power consumption due to motor drive



    · Modular design for 2/2, 3/2 and 4/3 applications

    · Direct absolute angle sensing of the valve position

    · Control and feedback via LIN or PWM


Technical data

Cooling Motor Valve
Flow 25 l/min at ≤ 0,2 bar
Pressure 2 bar
Leackage 0,1 l/min at 1,6 bar
Nominal voltage  9 – 16 V DC
Current consumption  max. 1.5 A
Ambient temperature  -40 °C to +125 °C
Media temperature 120 °C
Protection class IP6K9K
Control LIN or PWM
Switching time < 2 sec.
