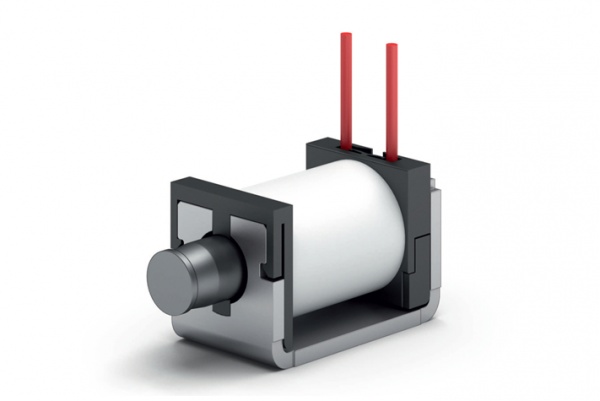

C-frame solenoids

C-frame solenoids

Applications

· Actuator solenoids for industrial applications, medical technology and security systems



Features

    · Sizes (W x L x H): 14 x 15 x 20 mm / 16 x 19.5 x 24 mm / 18 x 20.5 x 32 mm

    · Models with and without return spring



Technical data

C-frame solenoids
Voltages  6 – 230 V DC
Power  2.3 – 82 W (100 % – 5 % ED)
Duty cycle   100 %
Solenoid force at 100 % ED  0.05 – 0.3 N
Solenoid force at 5 % ED  1 – 5.3 N
Stroke  5 – 6 mm
Tightness  IP00

The specifications listed above apply to standard models. Other versions possible upon request
