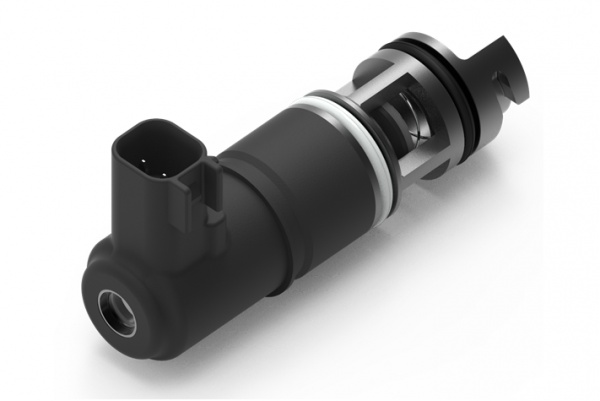

Canister vent valves – CVS system

Canister vent valves – CVS system


· To meet OBD-II applications in the USA and Korea



    · Overmoulded assembly

    · USCAR connector

    · Low-noise


Technical data


Canister vent valves
Flow  80 l/min (14 mm opening)
Power consumption   821 mA (max. calculated)
Resistance  19.5 ohms at 23 °C
Stroke  2.9 mm
Nominal voltage  12 V DC
Ambient temperature  –20 °C – 90 °C
Protection class (dust)  IP6K4K
Operating status  Normally-open, energised seal against pressure in the tank
Dimensions  Outside diameter 25 mm, length 88.8 mm
