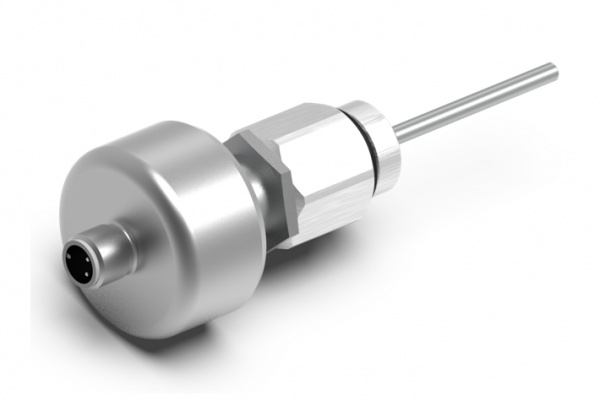

Inductive position switches

Inductive position switches


· Sensor for position feedback of hydraulic solenoids, integrated in pressure pipe or valves for stationary and mobile hydraulics



    · Size: Ø 42 mm

    · Overall length without adapter and M12 device connector: 53 mm / 61 mm / 79 mm

    · Screw threads M18 x 1

    · M12 device connector

    · CE conformity EMV

    · Mechanical configuration of switching point possible


Technical data

Inductive position switches
Supply voltage  24 V DC ± 20 %
Position feedback (coil spacing)  12 mm, 16 mm, 25 mm, recording of centre position signal possible
Pressure range  315 bar and 420 bar (dynamic compressive strength)
Tightness  IP65

The specifications listed above apply to standard models. Other versions possible upon request
