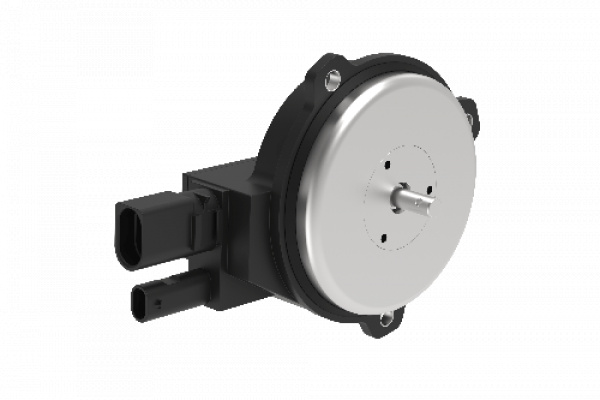

Motorized Phaser

Motorized Phaser

Applications

· Actuation of a mechanical camshaft phase adjuster via a gearbox

· Mounting on the cylinder head of an internal combustion engine

· Actuation of a variable camshaft via a gear unit for various applications



Customer benefits

· High dynamics and control accuracy

· Diagnostics via LIN bus possible



Features

    · Very flat design



Technical data



Motorized Phaser
Torque  up to 0.45 Nm
Speed up to 7.000 rpm
Nominal voltage  9,8 – 16 V
Current consumption  < 40 A
Ambient temperature  -40 °C to +150 °C
Protection class IP6K9K
Control PWM
Electronics integrated
Preset signal PWM input signal
Actual signal PWM output signal (speed and direction of rotation measured with sensors)
Diagnosis LIN BUS interface possible
