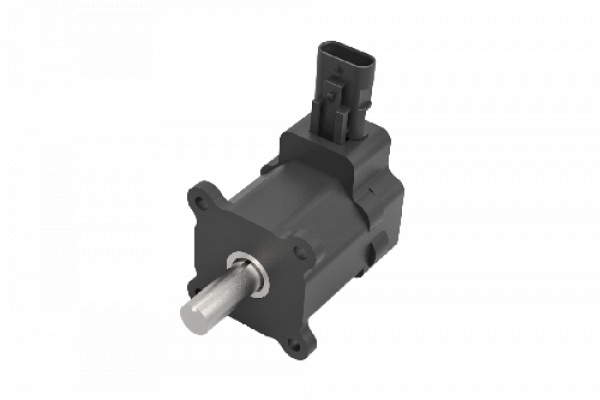

Stepper motor

Stepper motor

Applications

· Actuation of valves for gaseous or hydraulic fluids

· Various applications for stepper motors



Customer benefits

· Motor with integrated control electronics

· High positioning accuracy

· Rotor chamber sealed, also for high pressures



Features

    · Stall detection and zero-point referencing possible

    · Control and feedback via LIN



Technical data



Stepper motor
Torque  up to 35 Nmm
Speed up to 250 rpm
Step winkel > 2.8 °
Nominal voltage  9,8 – 16 V
Current consumption  < 0.5 A
Ambient temperature  -40 °C to +125 °C
Media temperature 125 °C
Pressure resistance rotor chamber  up to 170 bar
Protection class IP6K9K
Control LIN BUS interface
Electronics integrated
