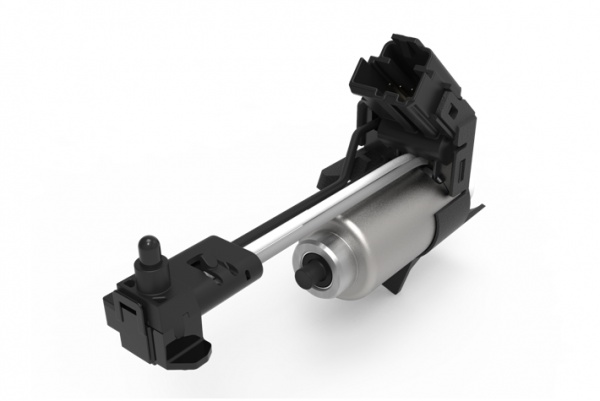

BTSI (Brake Transmission Shift Interlock) actuators

BTSI (Brake Transmission Shift Interlock) actuators

Applications

· The BTSI actuator, activated by pressing the break pedal, releases the vehicle’s gear lever.



Features

    · Low-noise

    · Integrated parking recognition switch



Technical data

BTSI actuators
Power consumption  567 mA (max. calculated)
Resistance  28.2 ohms at 23°C
Stroke  3.9 mm
Nominal voltage  12 V DC
Ambient temperature  –40 °C – 85 °C
Protection class (dust)  IP40
Operating status  Normally-open extended, switching solenoid
Dimensions  Outside diameter: 18 mm, length: 56.4 mm
